HIGH PRESSURE
INFLATABLE
EVENT DOME
INSPIRED BY NATURE
FLOWER
a symbiose of the design and a technology
DESIGN – Unique design of the FLOWER event dome inspired by nature is bringing new emotions to conservative world of event stands. Different in all aspects, providing positive energy to people inside with asymmetric shape and fresh air inside. Each petal is an independent part of the structure, different size, moving its own way in a wind, similar to the real flower.
HANDLING – Each version of the FLOWER can be transported in a van. Depending on its size, a team of 3 to 6 people can completely set it up within 3 to 5 hours, depending on terrain and personal experience.
TECHNOLOGY – The FLOWER is a combination of three materials. The shape of petals is guaranteed by patented system of high pressure pneumatic tubes, inflated to nominal pressure of 6 bar (30x more as standard inflatable structures). The tension of petal membranes is done with FR certified, high tech Bedouinflex PU stretch membrane. The weight of whole stand is given by using of steel components for central pole and perimeter plates in a combination with water ballast bags.
WEATHER RESISTANCE – The FLOWER is certified according to Eurocode norm for wind up to 28 m/s (100 km/h). In a case of thunderstorm or strong wind, the sleeve of central pole can be retracted down to decrease total height of whole structure by 1,3m. Water floating to the center of stand is drained through central gutter. Optional triangle shades around the perimeter are protecting the inside area against water, as well as, giving more shade, increasing efficient size of of the dome by 15%.
HIGH PRESSURE
The only inflatable dome on the market using high pressure tubes.
WIND RESISTANT
Extreme wind resistand structure up to 100 km/h.
NATURE
Flexible fabrics with good recovery memory.
PRINTABLE
Fully printable petals by using dye sublimation printing
global shipment
“Solution for any kind of terrain.”

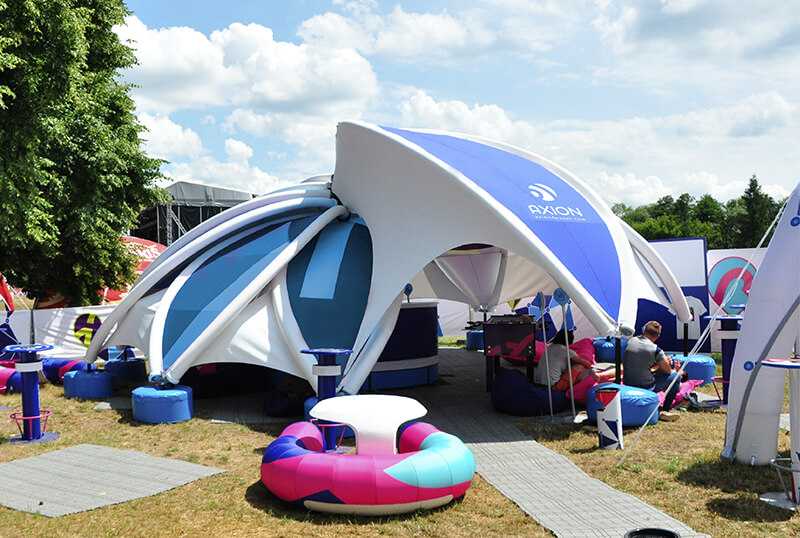

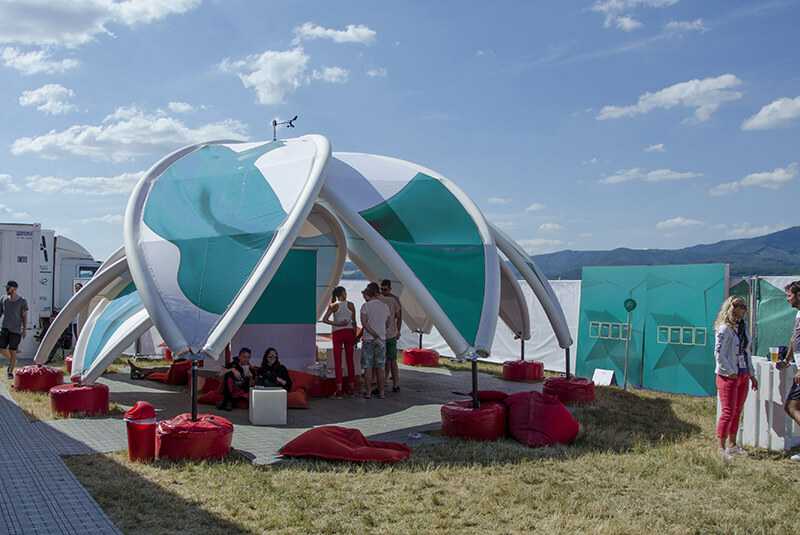

FLOWER PRO
Anchoring with ballast bags allows for installation on any kind of hard surface.

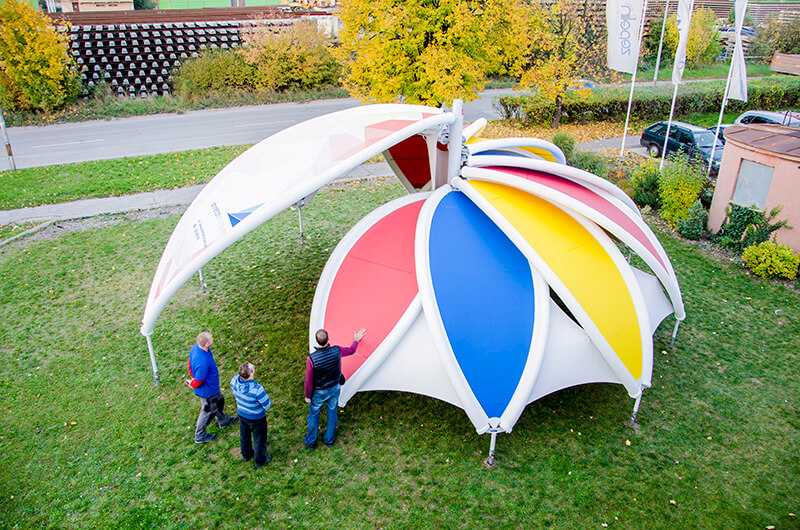

FLOWER LITE
Flower Lite is recommended for soft (e.g. grass, snow) terrain. Drill anchoring pegs.
AVAILABLE SIZES
| FLOWER MODEL | 10PRO | 12PRO | 14PRO | 10LITE | 12LITE | 14LITE |
| width “X” (m) | 10,8 | 12 | 14 | 10,8 | 12 | 14 |
| length “Y” (m) | 8,6 | 10,3 | 12 | 8,6 | 10,3 | 12 |
| height “Z” (m) | 4,3 | 5,2 | 6 | 4 | 4,8 | 5,6 |
| covered area petals only A(m2) | 52 | 82 | 109 | 52 | 82 | 109 |
| covered area triangle shades B(m2) | 64 | 94 | 125 | 64 | 94 | 125 |
| st. structure weight | 1100 | 1150 | 1200 | 350 | 400 | 450 |
| petals weight | 400 | 450 | 500 | 400 | 450 | 500 |
| water ballast | 3000 | 3500 | 4000 | 0 | 0 | 0 |
| installation time (hours) | 3-4 | 3,5-4,5 | 4-5 | 4-5 | 4,5-5,5 | 5-6 |
| installation person | 3-4 | 3-5 | 4-6 | 3-4 | 3-5 | 4-6 |
WHY OUR FLOWER?
- natural design
- high pressure tubes
- suitable for any terrain

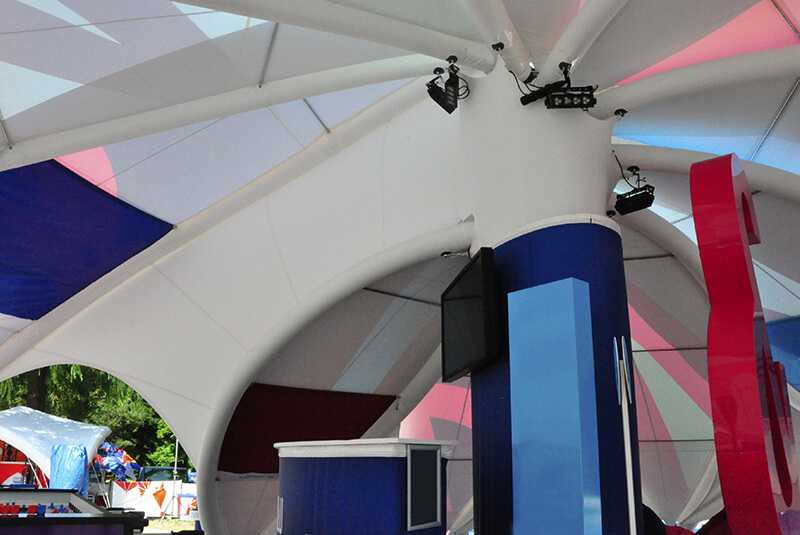

- retractable central pole
- detachable triangle shades
